GUI

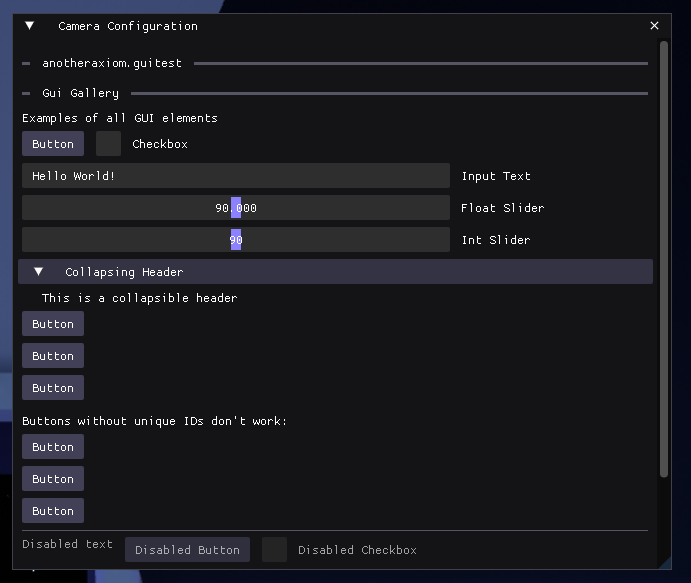

A2 gives camera scripts the ability to design their own GUI window for configuration or control. A subset of the Dear ImGui library is available for use in camera scripts under the Gui namespace.

Usage

GUI elements can only be created during the onGui() function. This function is called by the game every time the GUI is updated, which is generally every frame if the GUI is visible. All GUI functions are contained in the Gui namespace.

function onGui()
  -- GUI elements go here
  Gui.text("Hello, world!")
end

Input GUI elements generally return the old or changed value. A common pattern is to pass in a variable, then set the same variable to the return value of the GUI element's return value:

local myBool: boolean = false
local myFloat: number = 0

function onGui()
    myBool = Gui.checkbox("My Bool", myBool)
    myFloat = Gui.sliderFloat("My Float", myFloat, 0, 100)
end

Buttons return true on the frame that they are clicked:

function onGui()
    if Gui.button("Click Me") then
        print("Clicked")
    end
end

Currently available GUI elements:
